GRACE III
SES YACHTS

TC 128-3 S/Y ‘Grace III'

Grace III is a customised version of the Truly Classic 128 limited series designed by Andre HOEK, Hoek Naval Architects B.V.

Grace III is built for an experienced yachtsman who has been heavily involved in all details of the yacht, especially her interior and exterior design. She incorporates an owner’s cabin aft, three guest cabins and two crew cabins, one of which is a ‘flex’ cabin for use during charters.

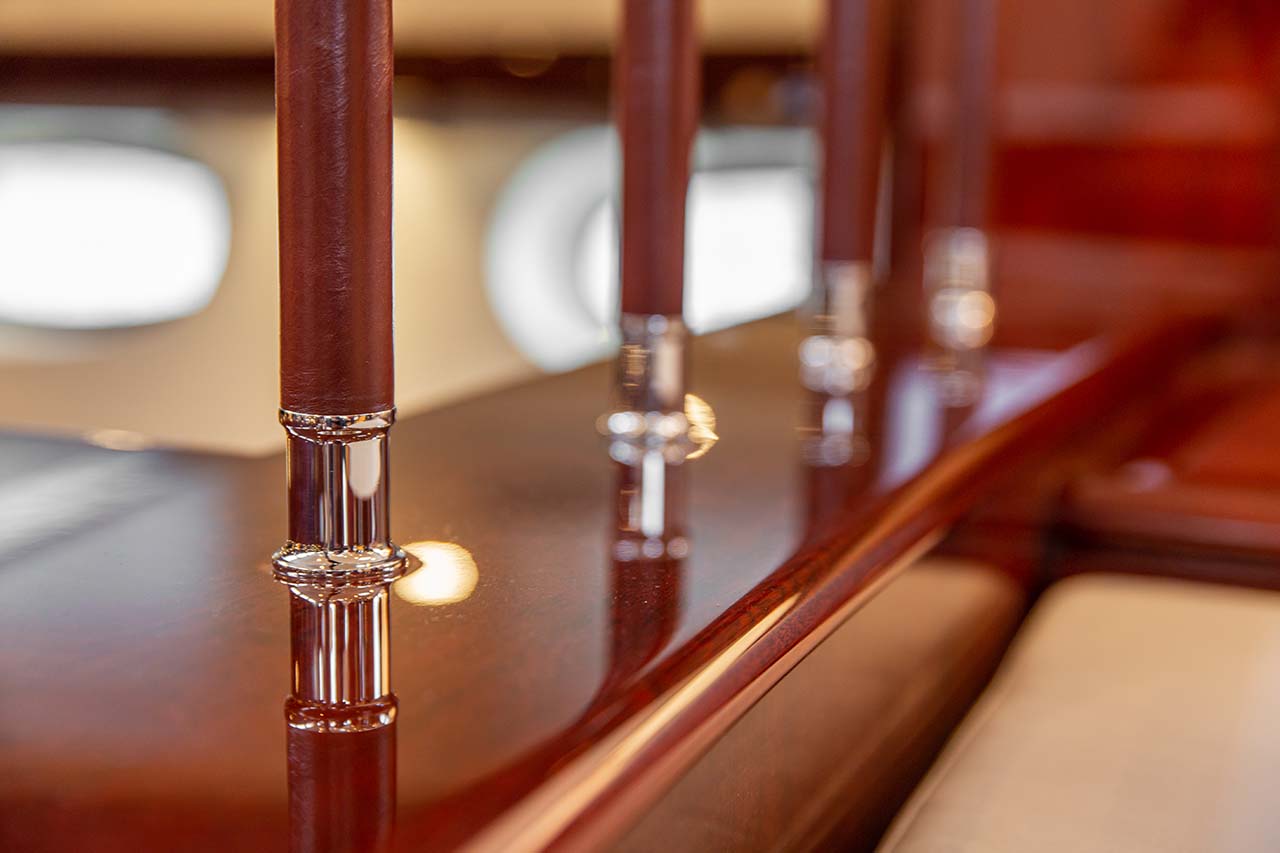

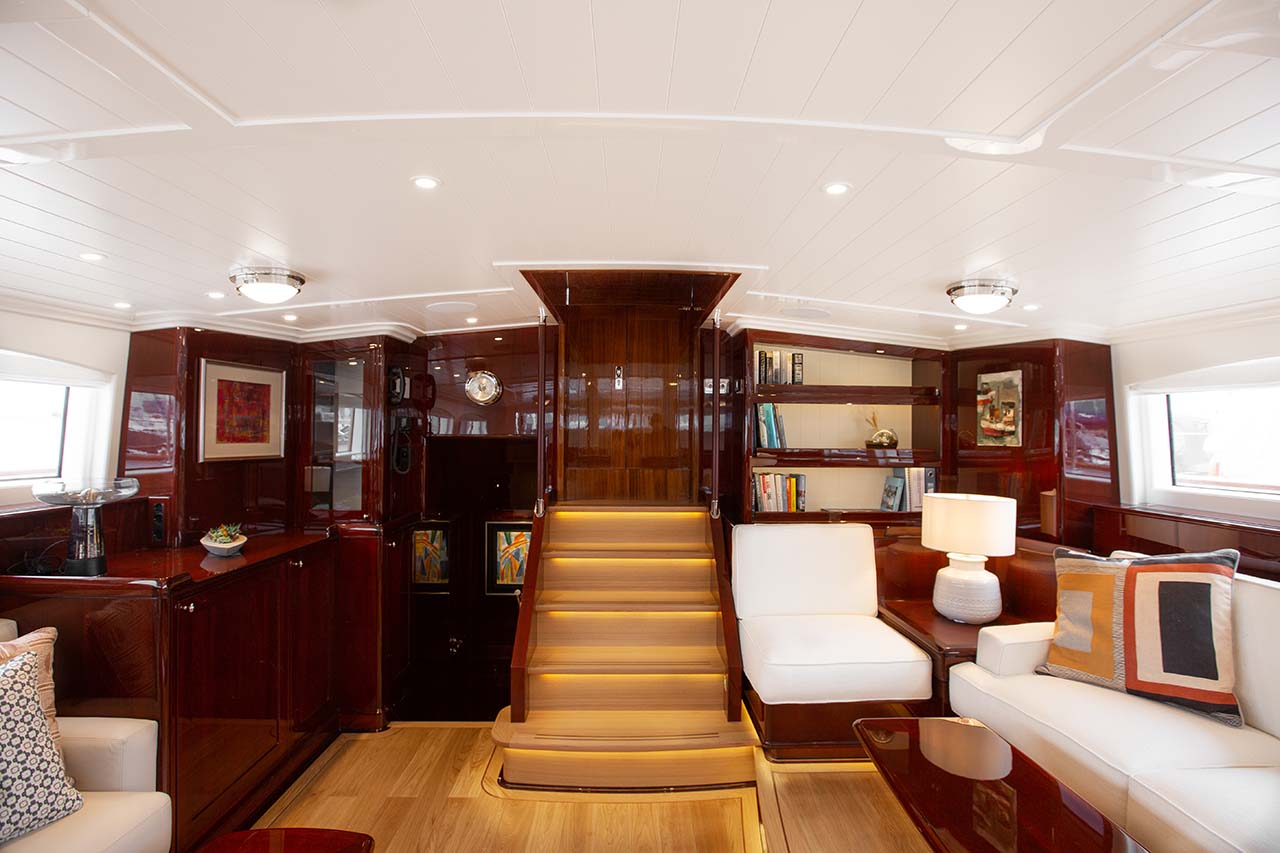

The interior design and styling are by Hoek Design with décor and soft furnishings by YM Design of London, all in close cooperation with the owners. The interior joinery features simple mahogany panelling, oak floors and off-white painted deckheads and bulkheads in all cabins. The exterior has been customised with a single main deckhouse open to the lower saloon and dining area to create a great feeling of space.

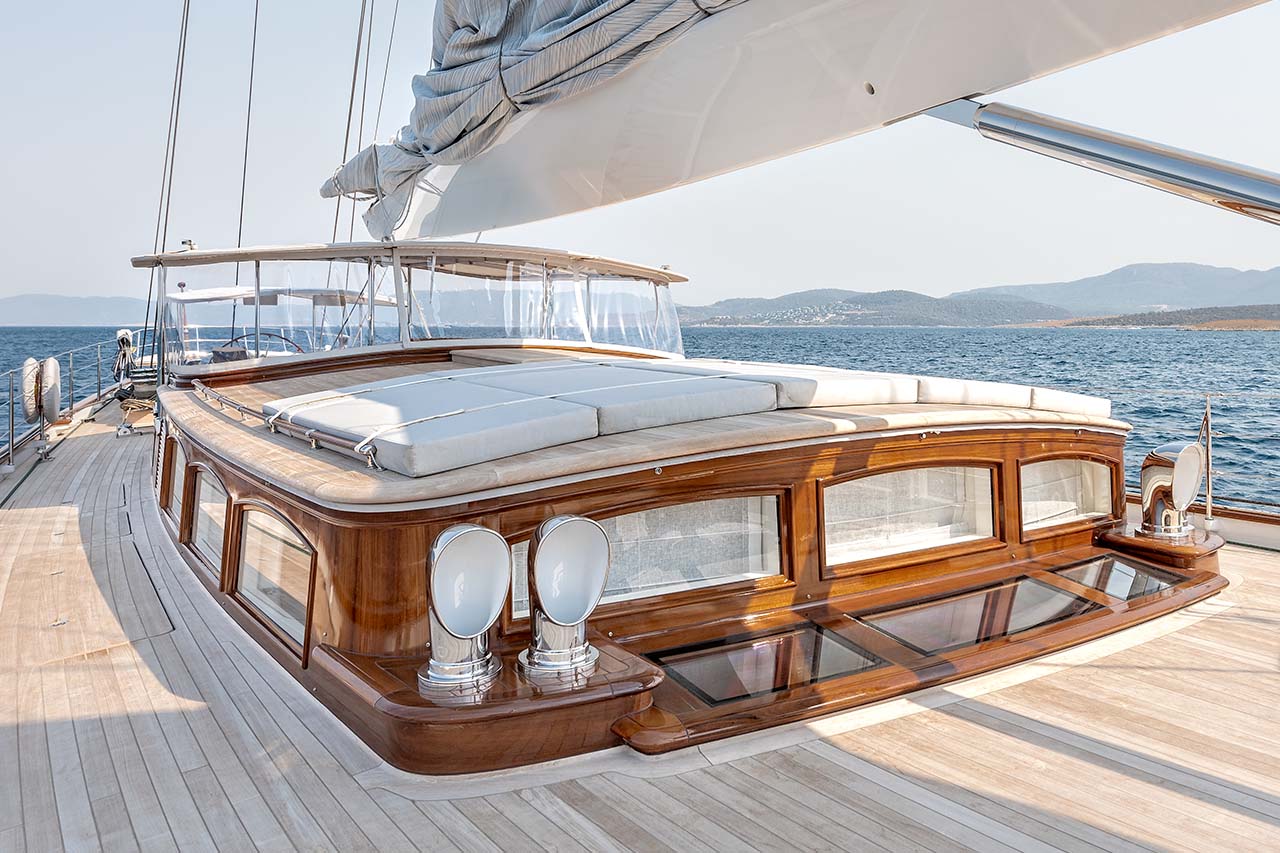

On the aft deck there are two separate cockpits, one a working area, the other for guests to relax. There’s a dining table for twelve. The separation of the cockpits works well, providing guests and children not involved in sailing a safe and comfortable place to relax.

Technically, Grace III is built to world class standards and is equipped with a Scania main engine, Kohler generators, Lewmar hydraulics systems and a controllable pitch propellor by Hundested, as well as features and equipment normally found aboard a sailing superyacht of this size.

Specification

S/Y Grace III – TRULY CLASSIC
Builder Ses Yachts
Naval Architect Hoek Design & Naval Architects
Interior Design Hoek Design & Naval Architects
Interior Decoration YM Desing London
Keel Laying Date 2018
Delivery 2021
Flag Turkey & MCA
Class Notation RINA: C ✠HULL ● MACH YCH COMMERCIAL + MCA LY3
Hull Material Aluminium
Superstructure Material Aluminium
Crew 6 persons (Including spare cabin)
Owner & Guest Cabins 8 persons (Including spare cabin)
Length hull over all 39.34 m
Length on design waterline 27.95 m
Beam max 7.72m
Draft on design waterline 4.60 m
Displacement 140 ton
Ballast weight 33 ton
Gross Tonnage 131
Mast above waterline 52.90 m
Keel type Fin keel with bulb
Rudder type Spade rudder
Rigging Fractional cutter rigged sloop
Main Sail Area 416sqm
Yankee Sail Area 248sqm
Staysail Area 130sqm
Main Engine(s) Scania 368kW @ 1800 rpm
Gearbox ZF 500-1-A
Electrical Generator(s) 2 x Kohler 35kW
Propulsion Hundested CPP
Bow Thruster Lewmar VRTTH 75hp
Cruising Speed 10 knots
Maximum Speed 12 knots
Electrical System 380V / 220V / 24V
Steering System Edson Chain & Rope Steering & Autopilot
Fuel Capacity 11.800lt
Fresh Water Capacity 4.650lt
Black Water Capacity 2.640lt
Boiler 2 x 100 lt Gianneschi Stainless Steel
Air Conditioning System Webasto Chiller System
Household Appliances Miele & Gaggenau
Anchor Windlass Lewmar VP9, CQR 400 lbs
Deck Equipment Lewmar Stainless Steel
Pumps Gianneschi
Toilets Tecma
Passerelle Carbon – CSC
Boarding Ladder Carbon – Multiplex
Boarding Platform Hydraulic, Side Platform Custom Build
Battery Mastervolt – Lithuim Ion & AGM & Gel
Inverter Mastervolt
Battery Charger Mastervolt
Mast Hall Spars – Carbon
Boom Hall Spars – Carbon
Standing Rigging BSI – Rod
Mast winches and other Lewmar Stainless Steel
Standing rigging Rod Rigging
Hydraulic furlers Reckmann – Hydraulic
Heating Reverce Cylcle Aircon & Webasto Diesel Heater
Aircondition Webasto HVAC
Water Maker SeaRecovery & Silver Ion Disinfection System
